OkHttp源码分析

OkHttp使用Call抽象出一个满足请求的模型，尽管中间可能会有多个请求或响应。执行Call有两种方式，同步或异步

一、创建OKHTTPClient对象，进行源码分析：

OkHttpClient client = new OkHttpClient();复制代码

通过okhttp源码分析，直接创建的 OkHttpClient 对象并且默认构造 builder 对象进行初始化

public class OkHttpClient implements Cloneable, Call.Factory, WebSocket.Factory {
  public OkHttpClient() {
       this(new Builder());
  }
  OkHttpClient(Builder builder) {
    this.dispatcher = builder.dispatcher;
    this.proxy = builder.proxy;
    this.protocols = builder.protocols;
    this.connectionSpecs = builder.connectionSpecs;
    this.interceptors = Util.immutableList(builder.interceptors);
    this.networkInterceptors = Util.immutableList(builder.networkInterceptors);
    this.eventListenerFactory = builder.eventListenerFactory;
    this.proxySelector = builder.proxySelector;
    this.cookieJar = builder.cookieJar;
    this.cache = builder.cache;
    this.internalCache = builder.internalCache;
    this.socketFactory = builder.socketFactory;

    boolean isTLS = false;
    ......

    this.hostnameVerifier = builder.hostnameVerifier;
    this.certificatePinner = builder.certificatePinner.withCertificateChainCleaner(
        certificateChainCleaner);
    this.proxyAuthenticator = builder.proxyAuthenticator;
    this.authenticator = builder.authenticator;
    this.connectionPool = builder.connectionPool;
    this.dns = builder.dns;
    this.followSslRedirects = builder.followSslRedirects;
    this.followRedirects = builder.followRedirects;
    this.retryOnConnectionFailure = builder.retryOnConnectionFailure;
    this.connectTimeout = builder.connectTimeout;
    this.readTimeout = builder.readTimeout;
    this.writeTimeout = builder.writeTimeout;
    this.pingInterval = builder.pingInterval;
  }
}复制代码

二、发起Http请求

Request request = new Request.Builder().url("url").build();
okHttpClient.newCall(request).enqueue(new Callback() {
  @Override
  public void onFailure(Call call, IOException e) {

  }

  @Override
  public void onResponse(Call call, Response response) throws IOException {

  }
});复制代码

三、代码流程分析

Request request = new Request.Builder().url("url").build();复制代码

初始化构造者模式和请求对象 ，并且用URL替换Web嵌套字URL。

public final class Request {
    public Builder() {
      this.method = "GET";
      this.headers = new Headers.Builder();
    }
    public Builder url(String url) {
      ......

      // Silently replace web socket URLs with HTTP URLs.
      if (url.regionMatches(true, 0, "ws:", 0, 3)) {
        url = "http:" + url.substring(3);
      } else if (url.regionMatches(true, 0, "wss:", 0, 4)) {
        url = "https:" + url.substring(4);
      }

      HttpUrl parsed = HttpUrl.parse(url);
      ......
      return url(parsed);
    }
    public Request build() {
      ......
      return new Request(this);
    }
}复制代码

四、方法解析

okHttpClient.newCall(request).enqueue(new Callback() {
@Override
public void onFailure(Call call, IOException e) {

}

@Override
public void onResponse(Call call, Response response) throws IOException {

}
});复制代码

源码分析：

public class OkHttpClient implements Cloneable, Call.Factory, WebSocket.Factory {
   @Override
   public Call newCall(Request request) {
    return new RealCall(this, request, false /* for web socket */);
   }
}复制代码

RealCall 实现了 Call.Factory 接口创建了一个 RealCall 的实例，而 RealCall 是 Call 接口的实现。

1、异步请求的执行流程

final class RealCall implements Call {
   @Override
   public void enqueue(Callback responseCallback) {
     synchronized (this) {
       if (executed) throw new IllegalStateException("Already Executed");
       executed = true;
     }
     captureCallStackTrace();
     client.dispatcher().enqueue(new AsyncCall(responseCallback));
  }
}复制代码

由上述源码得知：

检查 这个Call是否已经被执行 了， 每个 Call 只能被执行一次 ，如果想要一个完全一样的call，可以利用call#clone方法进行克隆。
利用 client.dispatcher().enqueue(this) 来进行实际执行， dispatcher 是刚才看到的 OkHttpClient.Builder 的成员之一。
AsyncCall类 是 RealCall类 的一个 内部类 并且继承 NamedRunnable ，那么首先看NamedRunnable类是什么样的，如下：

public abstract class NamedRunnable implements Runnable {
  ......

  @Override
  public final void run() {
   ......
    try {
      execute();
    }
    ......
  }

  protected abstract void execute();
}复制代码

可以看到 NamedRunnable 实现了 Runnable 接口并且是个 抽象类 ，其 抽象方法 时 execute() ，该方法是在 run() 方法中 被调用 的，这也就 意味着NamedRunnable是一个任务 ，并且其子类 应该实现execute()方法 。下面再看AsyncCall的实现：

final class AsyncCall extends NamedRunnable {
    private final Callback responseCallback;

    AsyncCall(Callback responseCallback) {
      super("OkHttp %s", redactedUrl());
      this.responseCallback = responseCallback;
    }

    ......复制代码

final class RealCall implements Call {
  @Override
  protected void execute() {
    boolean signalledCallback = false;
    try {
       Response response = getResponseWithInterceptorChain();
       if (retryAndFollowUpInterceptor.isCanceled()) {
        signalledCallback = true;
        responseCallback.onFailure(RealCall.this, new IOException("Canceled"));
       } else {
         signalledCallback = true;
         responseCallback.onResponse(RealCall.this, response);
       }
    } catch (IOException e) {
      ......
      responseCallback.onFailure(RealCall.this, e);

    } finally {
      client.dispatcher().finished(this);
    }
  }
}复制代码

AsyncCall类 实现了 execute() 方法，首先是调用 getResponseWithInterceptorChain() 方法 获取响应 ，然后 获取成功 后，就调用回调的 onResponse() 方法，若失败，就回调 onFailure() 方法。最后，调用 Dispatcher 的 finished() 方法。

关键代码：

responseCallback.onFailure(RealCall.this, new IOException("Canceled"));
复制代码

和

responseCallback.onResponse(RealCall.this, response);
复制代码

走完这两句代码会进行回调到刚刚我们初始化OkHttp的地方，如下：

okHttpClient.newCall(request).enqueue(new Callback() {
   @Override
   public void onFailure(Call call, IOException e) {

   }

   @Override
   public void onResponse(Call call, Response response) throws IOException {

   }
});复制代码

通过传入的 callback 封装了 AsyncCall 对象，在AsyncCall之后直接调用了 dispatcher().enqueue() 方法，并将前面创建好的AsyncCall传到这个方法当中。

client.dispatcher() 返回的就是 一个 dispatcher 对象 ，同时他的 初始化操作 也是在前面构建okhttpClient对象时它的内部的构造方法已经初始化好了，dispatcher默认值。

enqueue() 方法 如下：

synchronized void enqueue(AsyncCall call){
  if(runningAsyncCalls.size() > maxRequests && runningCallsForHost(call)){
    runningAsyncCalls.add(call);
    executorService().execute(call);
  } else {
    readyAsyncCalls.add(call);
  }
}复制代码

enqueue() 方法本身加了一个 同步锁 ，并且这个方法传入了刚才的 Runnable 实例 ，也就是 AsyncCall 对象 。

首先是一个判断，就是正在运行的这个异步任务（ maxRequests = 64 ）和正在调度请求每一个主机的最大数（ maxRequestsPerHost = 5 ）进行这两个值的判断你，如果这两个值都在最大数里面，那么就可以把刚才传入的AsyncCall对象添加到正在执行的异步请求队列（ runningAsyncCalls ）当中，如果不满足就会加到准备就绪的异步请求队列当中（ readyAsyncCalls ）。

五、核心重点类Disposepatcher线程池介绍

public final class Dispatcher {
  /** 最大并发请求数为64 */
  private int maxRequests = 64;
  /** 每个主机最大请求数为5 */
  private int maxRequestsPerHost = 5;

  /** 线程池 */
  private ExecutorService executorService;

  /** 准备执行的请求 */
  private final Deque<AsyncCall> readyAsyncCalls = new ArrayDeque<>();

  /** 正在执行的异步请求，包含已经取消但未执行完的请求 */
  private final Deque<AsyncCall> runningAsyncCalls = new ArrayDeque<>();

  /** 正在执行的同步请求，包含已经取消单未执行完的请求 */
  private final Deque<RealCall> runningSyncCalls = new ArrayDeque<>();复制代码

在OkHttp，使用如下构造了 单例线程池

public synchronized ExecutorService executorService() {
    if (executorService == null) {
      executorService = new ThreadPoolExecutor(0, Integer.MAX_VALUE, 60, TimeUnit.SECONDS,
          new SynchronousQueue<Runnable>(), Util.threadFactory("OkHttp Dispatcher", false));
    }
    return executorService;
  }复制代码

构造一个线程池ExecutorService：

executorService = new ThreadPoolExecutor(
//corePoolSize 最小并发线程数,如果是0的话，空闲一段时间后所有线程将全部被销毁
    0,
//maximumPoolSize: 最大线程数，当任务进来时可以扩充的线程最大值，当大于了这个值就会根据丢弃处理机制来处理
    Integer.MAX_VALUE,
//keepAliveTime: 当线程数大于corePoolSize时，多余的空闲线程的最大存活时间
    60,
//单位秒
    TimeUnit.SECONDS,
//工作队列,先进先出
    new SynchronousQueue<Runnable>(),
//单个线程的工厂
   Util.threadFactory("OkHttp Dispatcher", false));复制代码

可以看出，在 OkHttp 中，构建了一个线程范围在 [0, Integer.MAX_VALUE] 的 线程池 ，它 不保留任何最小线程数 ， 随时创建更多的线程数 ，当线程 空闲时只能存活 60s ，它使用了一个 不存储元素的阻塞工作队列 ，一个叫做“ OkHttp Dispatcher ”的 线程工厂 。

也就是说，在实际运行中，当收到10个并发请求时，线程池创建10个线程，当工作完成后，线程池会在60s后相继关闭所有线程。

synchronized void enqueue(AsyncCall call) {
    if (runningAsyncCalls.size() < maxRequests && runningCallsForHost(call) < maxRequestsPerHost) {
      runningAsyncCalls.add(call);
      executorService().execute(call);
    } else {
      readyAsyncCalls.add(call);
    }
  }复制代码

从上述源码分析，如果当前还能执行一个并发请求，则加入runningAsyncCalls，立即执行，否则加入readyAsyncCall队列。

六、Dispatcher线程池总结

调度线程池Dispatcher实现了高并发，低阻塞的功能
采用Deque作为缓存，先进先出的顺序执行
任务在try/finally中调用了finished()方法，控制任务队列的执行顺序，而不是采用锁，减少了编码复杂性，提高性能。

try {
        Response response = getResponseWithInterceptorChain();
        if (retryAndFollowUpInterceptor.isCanceled()) {
          signalledCallback = true;
          responseCallback.onFailure(RealCall.this, new IOException("Canceled"));
        } else {
          signalledCallback = true;
          responseCallback.onResponse(RealCall.this, response);
        }
      } finally {
        client.dispatcher().finished(this);
      }复制代码

在任务执行完成后， 无论是否有异常 ，finally代码段总会被执行，也就是会调用 DIspatcher 的 finished() 方法。

void finished(AsyncCall call) {
    finished(runningAsyncCalls, call, true);
  }复制代码

从上面的代码可以看出，第一个参数传入的是正在运行的异步队列，第三个参数为true，下面再看有 三个参数 的 finished() 方法：

private <T> void finished(Deque<T> calls, T call, boolean promoteCalls) {
    int runningCallsCount;
    Runnable idleCallback;
    synchronized (this) {
      if (!calls.remove(call)) throw new AssertionError("Call wasn't in-flight!");
      if (promoteCalls) promoteCalls();
      runningCallsCount = runningCallsCount();
      idleCallback = this.idleCallback;
    }

    if (runningCallsCount == 0 && idleCallback != null) {
      idleCallback.run();
    }
  }复制代码

打开源码，发现它将 正在运行的任务Call 从队列 runningAsyncCalls 中移除后，获取 运行数量 判断是否进入 Idle 状态 ，接着执行 promoteCalls() 方法，

下面是 promoteCalls() 方法：

private void promoteCalls() {
    if (runningAsyncCalls.size() >= maxRequests) return; // Already running max capacity.
    if (readyAsyncCalls.isEmpty()) return; // No ready calls to promote.

    for (Iterator<AsyncCall> i = readyAsyncCalls.iterator(); i.hasNext(); ) {
      AsyncCall call = i.next();

      if (runningCallsForHost(call) < maxRequestsPerHost) {
        i.remove();
        runningAsyncCalls.add(call);
        executorService().execute(call);
      }

      if (runningAsyncCalls.size() >= maxRequests) return; // Reached max capacity.
    }
  }复制代码

该方法主要是 遍历等待队列 （ readyAsynsCalls ），并且 需要满足同一主机的请求（ runningCallsForHost(Call) ）小于 maxRequestsPerHost 时，就移到运行队列中并交给线程池运行。就主动的把缓存队列向前走了一步，而没有使用互斥锁等复杂编码。

七、核心重点getResponseWithInterceptorChain()方法

Response getResponseWithInterceptorChain() throws IOException {
    // Build a full stack of interceptors.
    List<Interceptor> interceptors = new ArrayList<>();
    interceptors.addAll(client.interceptors());
    interceptors.add(retryAndFollowUpInterceptor);
    interceptors.add(new BridgeInterceptor(client.cookieJar()));
    interceptors.add(new CacheInterceptor(client.internalCache()));
    interceptors.add(new ConnectInterceptor(client));
    if (!forWebSocket) {
      interceptors.addAll(client.networkInterceptors());
    }
    interceptors.add(new CallServerInterceptor(forWebSocket));

    Interceptor.Chain chain = new RealInterceptorChain(
        interceptors, null, null, null, 0, originalRequest);
    return chain.proceed(originalRequest);
  }复制代码

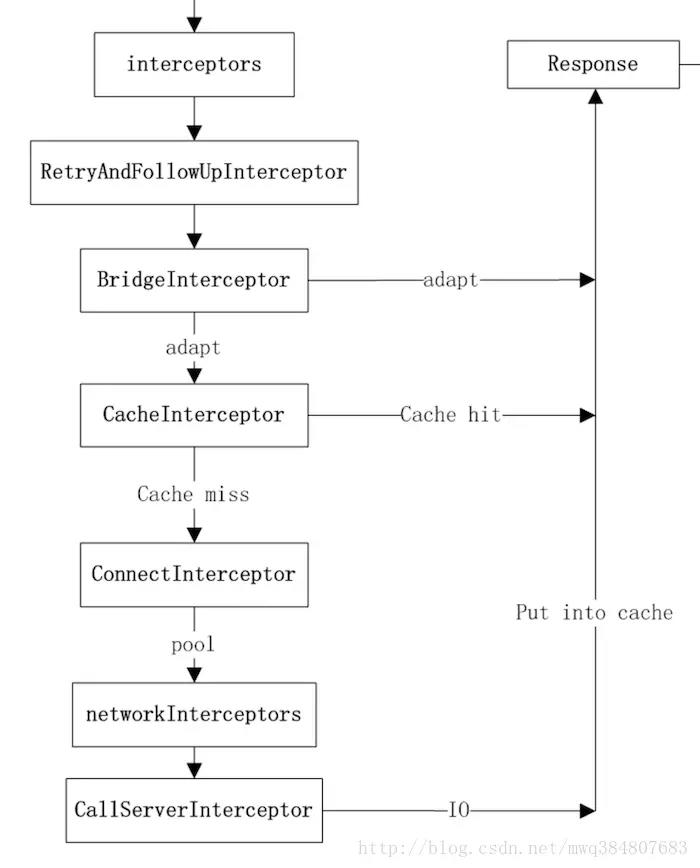

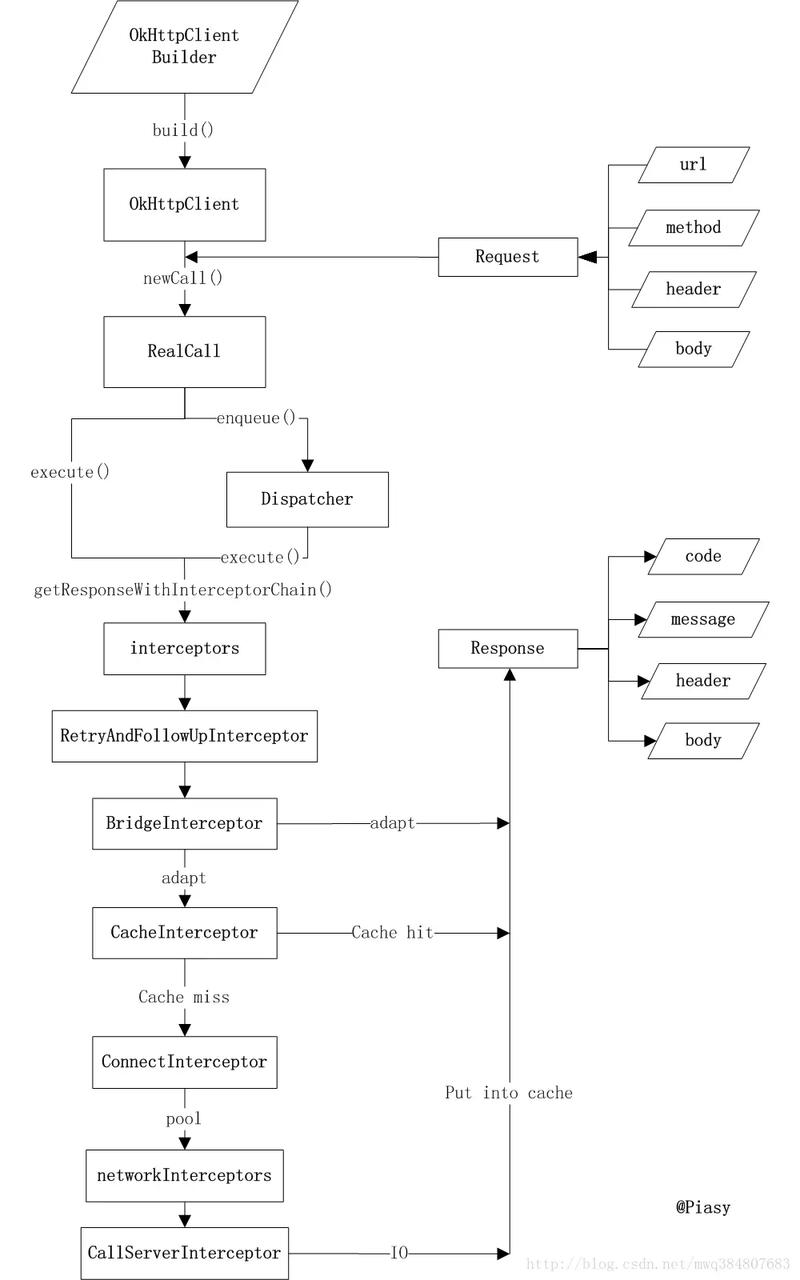

流程图：

OkHttp源码分析

（1）在配置 OkHttpClient 时设置的 interceptors

（2）负责 失败重试以及重定向 的 RetryAndFollowUpInterceptor

（3）负责把用户构造的请求转换为 发送到服务器 的请求、 把服务器返回的响应 转换为 用户友好的响应 的 BridgeInterceptor

（4）负责 读取缓存 直接返回、 更新缓存 的 CacheInterceptor

（5） 负责和服务器建立连接 的 ConnectInterceptor

（6）配置 OkHttpClient 时设置的 networkInterceptors

（7）负责向 服务器发送请求数据 、从 服务器读取响应数据 的 CallServerInterceptor

OkHttp 的这种 拦截器链 采用的是 责任链模式 ，这样的好处是将 请求的发送和处理分开 ，并且可以 动态添加 中间的 处理方 实现对 请求的处理、短路等操作 。

从上述源码得知，不管 OkHttp 有多少拦截器最后都会走，如下方法：

Interceptor.Chain chain = new RealInterceptorChain(
        interceptors, null, null, null, 0, originalRequest);
return chain.proceed(originalRequest);复制代码

从方法名字基本可以猜到是干嘛的，调用 chain.proceed(originalRequest); 将 request 传递进去，从拦截器链里拿到返回结果。

那么拦截器Interceptor是干嘛的，Chain是干嘛的呢？

继续往下看 RealInterceptorChain类

下面是 RealInterceptorChain类 的定义，该类 实现了 Chain接口 ，在 getResponseWithInterceptor() 调用时有好几个参数都传入的null。

public final class RealInterceptorChain implements Interceptor.Chain {

   public RealInterceptorChain(List<Interceptor> interceptors, StreamAllocation streamAllocation,
        HttpCodec httpCodec, RealConnection connection, int index, Request request) {
        this.interceptors = interceptors;
        this.connection = connection;
        this.streamAllocation = streamAllocation;
        this.httpCodec = httpCodec;
        this.index = index;
        this.request = request;
  }
  ......

 @Override
 public Response proceed(Request request) throws IOException {
    return proceed(request, streamAllocation, httpCodec, connection);
  }

  public Response proceed(Request request, StreamAllocation streamAllocation,
      HttpCodec httpCodec, RealConnection connection) throws IOException {
    if (index >= interceptors.size()) throw new AssertionError();

    calls++;

    ......

    // Call the next interceptor in the chain.
    RealInterceptorChain next = new RealInterceptorChain(
        interceptors, streamAllocation, httpCodec, connection, index + 1, request);
    Interceptor interceptor = interceptors.get(index);
    Response response = interceptor.intercept(next);

   ......

    return response;
  }

  protected abstract void execute();
}复制代码

主要看 processd() 方法，proceed()方法中判断 index （此时为0）是否大于或者等于 client.interceptors(list) 的大小。由于 HTTPStream 为 null ，所以首先 创建 next 拦截器链 ，需要把索引设置为 index+1 即可；然后获取 第一个拦截器 ，调用其 intercept() 方法。

1、Interceptor接口

public interface Interceptor {
  Response intercept(Chain chain) throws IOException;

  interface Chain {
    Request request();

    Response proceed(Request request) throws IOException;

    Connection connection();
  }
}复制代码

2、BridgeInterceptor类

BridgeInterceptor 类从用户的请求的构建网络请求，然后提交给网络，最后从网络响应中提取出用户响应。

从最上面的图可以看出，BridgeInterceptor实现了 适配的功能 。下面是其 intercept() 方法

public final class BridgeInterceptor implements Interceptor {
  ......

@Override
public Response intercept(Chain chain) throws IOException {
    Request userRequest = chain.request();
    Request.Builder requestBuilder = userRequest.newBuilder();

    RequestBody body = userRequest.body();
    //如果存在请求主体部分，那么需要添加Content-Type、Content-Length首部
    if (body != null) {
      MediaType contentType = body.contentType();
      if (contentType != null) {
        requestBuilder.header("Content-Type", contentType.toString());
      }

      long contentLength = body.contentLength();
      if (contentLength != -1) {
        requestBuilder.header("Content-Length", Long.toString(contentLength));
        requestBuilder.removeHeader("Transfer-Encoding");
      } else {
        requestBuilder.header("Transfer-Encoding", "chunked");
        requestBuilder.removeHeader("Content-Length");
      }
    }

    //请求头部为null，则添加请求头内容
    if (userRequest.header("Host") == null) {
      requestBuilder.header("Host", hostHeader(userRequest.url(), false));
    }

    //连接断开，则请求保持连接状态
    if (userRequest.header("Connection") == null) {
      requestBuilder.header("Connection", "Keep-Alive");
    }

    // If we add an "Accept-Encoding: gzip" header field we're responsible for also decompressing
    // the transfer stream.
    boolean transparentGzip = false;
    if (userRequest.header("Accept-Encoding") == null && userRequest.header("Range") == null) {
      transparentGzip = true;
      requestBuilder.header("Accept-Encoding", "gzip");
    }

    //若cookies为空，则添加对应的内容
    List<Cookie> cookies = cookieJar.loadForRequest(userRequest.url());
    if (!cookies.isEmpty()) {
      requestBuilder.header("Cookie", cookieHeader(cookies));
    }

    //添加用户代理
    if (userRequest.header("User-Agent") == null) {
      requestBuilder.header("User-Agent", Version.userAgent());
    }

    //此处执行chain类的proceed()方法，获得对应的网络请求数据
    Response networkResponse = chain.proceed(requestBuilder.build());

    HttpHeaders.receiveHeaders(cookieJar, userRequest.url(), networkResponse.headers());

    Response.Builder responseBuilder = networkResponse.newBuilder()
        .request(userRequest);

    //得到的请求数据，并对这些数据进行判断，以便添加一些数据，如请求数据内容，头信息等
    if (transparentGzip
        && "gzip".equalsIgnoreCase(networkResponse.header("Content-Encoding"))
        && HttpHeaders.hasBody(networkResponse)) {
      GzipSource responseBody = new GzipSource(networkResponse.body().source());
      Headers strippedHeaders = networkResponse.headers().newBuilder()
          .removeAll("Content-Encoding")
          .removeAll("Content-Length")
          .build();
      responseBuilder.headers(strippedHeaders);
      responseBuilder.body(new RealResponseBody(strippedHeaders, Okio.buffer(responseBody)));
    }

    return responseBuilder.build();
  }

  /** Returns a 'Cookie' HTTP request header with all cookies, like {@code a=b; c=d}. */
  private String cookieHeader(List<Cookie> cookies) {
    StringBuilder cookieHeader = new StringBuilder();
    for (int i = 0, size = cookies.size(); i < size; i++) {
      if (i > 0) {
        cookieHeader.append("; ");
      }
      Cookie cookie = cookies.get(i);
      cookieHeader.append(cookie.name()).append('=').append(cookie.value());
    }
    return cookieHeader.toString();
  }
}复制代码

从上面的代码可以看出，首先 获取原请求 ，然后在请求中 添加头信息 ，如 Host 、 Connection 、 Accept-Encoding 参数等，然后根据看是否需要填充 Cookie ，在对原始请求做出处理后，使用 chain 的 proceed() 方法得到响应，接下来对 响应做处理得到用户响应，最后返回响应 。

接下来再看下一个拦截器ConnectionInterceptor类的处理：

3、ConnectionInterceptor类

public final class ConnectInterceptor implements Interceptor {
  ......

 @Override
 public Response intercept(Chain chain) throws IOException {
   RealInterceptorChain realChain = (RealInterceptorChain) chain;
   Request request = realChain.request();
   StreamAllocation streamAllocation = realChain.streamAllocation();

   // We need the network to satisfy this request. Possibly for validating a conditional GET.
   boolean doExtensiveHealthChecks = !request.method().equals("GET");
   HttpCodec httpCodec = streamAllocation.newStream(client, doExtensiveHealthChecks);
   RealConnection connection = streamAllocation.connection();

   return realChain.proceed(request, streamAllocation, httpCodec, connection);
 }
}复制代码

实际上建立连接就是创建一个 HttpCodec 对象，它利用 Okio 对 Socket 的 读写操作 进行封装，Okio以后有机会再进行分析，现在让我们对它们保持一个简单地认识：它对 java.io 和 java.nio 进行了封装，让我们 更便捷高效的进行 io 操作 。

4、CallServerInterceptor类

CallServerInterceptor 是拦截器链中 最后一个拦截器 ，负责将 网络请求提交给服务器 。它的 intercep() 方法实现如下：

@Override
public Response intercept(Chain chain) throws IOException {
    RealInterceptorChain realChain = (RealInterceptorChain) chain;
    HttpCodec httpCodec = realChain.httpStream();
    StreamAllocation streamAllocation = realChain.streamAllocation();
    RealConnection connection = (RealConnection) realChain.connection();
    Request request = realChain.request();

    long sentRequestMillis = System.currentTimeMillis();
    httpCodec.writeRequestHeaders(request);

    Response.Builder responseBuilder = null;
    if (HttpMethod.permitsRequestBody(request.method()) && request.body() != null) {
      // If there's a "Expect: 100-continue" header on the request, wait for a "HTTP/1.1 100
      // Continue" response before transmitting the request body. If we don't get that, return what
      // we did get (such as a 4xx response) without ever transmitting the request body.
      if ("100-continue".equalsIgnoreCase(request.header("Expect"))) {
        httpCodec.flushRequest();
        responseBuilder = httpCodec.readResponseHeaders(true);
      }

      if (responseBuilder == null) {
        // Write the request body if the "Expect: 100-continue" expectation was met.
        Sink requestBodyOut = httpCodec.createRequestBody(request, request.body().contentLength());
        BufferedSink bufferedRequestBody = Okio.buffer(requestBodyOut);
        request.body().writeTo(bufferedRequestBody);
        bufferedRequestBody.close();
      } else if (!connection.isMultiplexed()) {
        // If the "Expect: 100-continue" expectation wasn't met, prevent the HTTP/1 connection from
        // being reused. Otherwise we're still obligated to transmit the request body to leave the
        // connection in a consistent state.
        streamAllocation.noNewStreams();
      }
    }

    httpCodec.finishRequest();

    if (responseBuilder == null) {
      responseBuilder = httpCodec.readResponseHeaders(false);
    }

    Response response = responseBuilder
        .request(request)
        .handshake(streamAllocation.connection().handshake())
        .sentRequestAtMillis(sentRequestMillis)
        .receivedResponseAtMillis(System.currentTimeMillis())
        .build();

    int code = response.code();
    if (forWebSocket && code == 101) {
      // Connection is upgrading, but we need to ensure interceptors see a non-null response body.
      response = response.newBuilder()
          .body(Util.EMPTY_RESPONSE)
          .build();
    } else {
      response = response.newBuilder()
          .body(httpCodec.openResponseBody(response))
          .build();
    }

    if ("close".equalsIgnoreCase(response.request().header("Connection"))
        || "close".equalsIgnoreCase(response.header("Connection"))) {
      streamAllocation.noNewStreams();
    }

    if ((code == 204 || code == 205) && response.body().contentLength() > 0) {
      throw new ProtocolException(
          "HTTP " + code + " had non-zero Content-Length: " + response.body().contentLength());
    }

    return response;
  }@Override public Response intercept(Chain chain) throws IOException {
    RealInterceptorChain realChain = (RealInterceptorChain) chain;
    HttpCodec httpCodec = realChain.httpStream();
    StreamAllocation streamAllocation = realChain.streamAllocation();
    RealConnection connection = (RealConnection) realChain.connection();
    Request request = realChain.request();

    long sentRequestMillis = System.currentTimeMillis();
    httpCodec.writeRequestHeaders(request);

    Response.Builder responseBuilder = null;
    if (HttpMethod.permitsRequestBody(request.method()) && request.body() != null) {
      // If there's a "Expect: 100-continue" header on the request, wait for a "HTTP/1.1 100
      // Continue" response before transmitting the request body. If we don't get that, return what
      // we did get (such as a 4xx response) without ever transmitting the request body.
      if ("100-continue".equalsIgnoreCase(request.header("Expect"))) {
        httpCodec.flushRequest();
        responseBuilder = httpCodec.readResponseHeaders(true);
      }

      if (responseBuilder == null) {
        // Write the request body if the "Expect: 100-continue" expectation was met.
        Sink requestBodyOut = httpCodec.createRequestBody(request, request.body().contentLength());
        BufferedSink bufferedRequestBody = Okio.buffer(requestBodyOut);
        request.body().writeTo(bufferedRequestBody);
        bufferedRequestBody.close();
      } else if (!connection.isMultiplexed()) {
        // If the "Expect: 100-continue" expectation wasn't met, prevent the HTTP/1 connection from
        // being reused. Otherwise we're still obligated to transmit the request body to leave the
        // connection in a consistent state.
        streamAllocation.noNewStreams();
      }
    }

    httpCodec.finishRequest();

    if (responseBuilder == null) {
      responseBuilder = httpCodec.readResponseHeaders(false);
    }

    Response response = responseBuilder
        .request(request)
        .handshake(streamAllocation.connection().handshake())
        .sentRequestAtMillis(sentRequestMillis)
        .receivedResponseAtMillis(System.currentTimeMillis())
        .build();

    int code = response.code();
    if (forWebSocket && code == 101) {
      // Connection is upgrading, but we need to ensure interceptors see a non-null response body.
      response = response.newBuilder()
          .body(Util.EMPTY_RESPONSE)
          .build();
    } else {
      response = response.newBuilder()
          .body(httpCodec.openResponseBody(response))
          .build();
    }

    if ("close".equalsIgnoreCase(response.request().header("Connection"))
        || "close".equalsIgnoreCase(response.header("Connection"))) {
      streamAllocation.noNewStreams();
    }

    if ((code == 204 || code == 205) && response.body().contentLength() > 0) {
      throw new ProtocolException(
          "HTTP " + code + " had non-zero Content-Length: " + response.body().contentLength());
    }

    return response;
  }复制代码

从上面的代码中可以看出，首先获取 HttpStream 对象，然后调用 writeRequestHeaders() 方法 写入请求的头部 ，然后判断是否需要 写入请求的body部分 ，最后调用 finishRequest() 方法将所有数据刷新给 底层的 Socket ，接下里尝试调用 readResponseHeaders() 方法获取 响应的头部 ，然后再调用 openResponseBody() 方法得到响应的 body部分 ，最后返回响应。

八、总结

OkHttp的底层是通过Java的Socket发送Http请求与接受响应的。但是OkHttp实现了连接池的概念，即对于同一主机的多个请求，其实可以公用一个Socket连接，而不是没发送完Http请求就关闭底层的Socket，这样就实现了连接池的概念。而OkHttp对Socket的读写操作使用的Okio库进行了一层封装。

OkHttp源码分析
